Specifications
| Weight | .04 kg |
|---|---|
| Product Applications | Ideal for high load applications such as, halyards, cascading vangs, backstays,, outhauls and cunningham systems. |
| Sheave Size (mm) | 30 |
| Unit | Each |

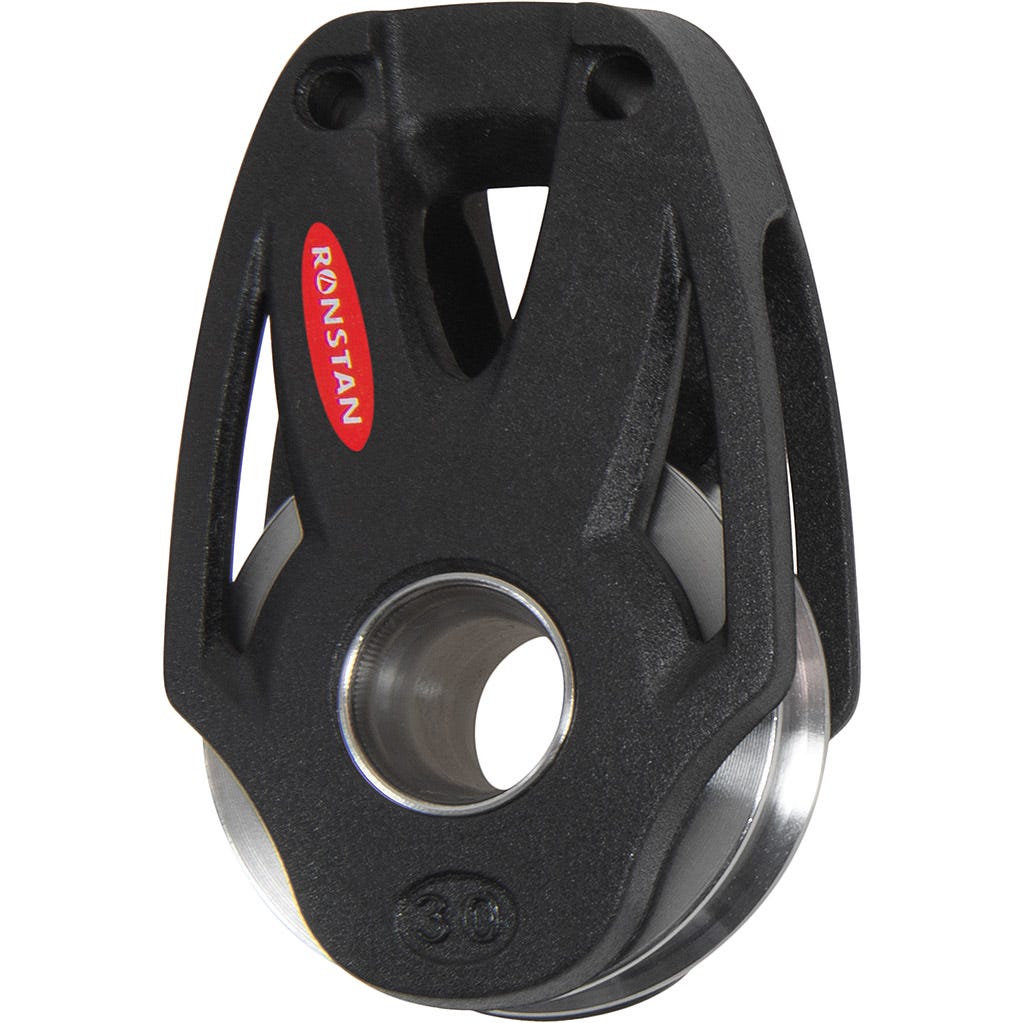

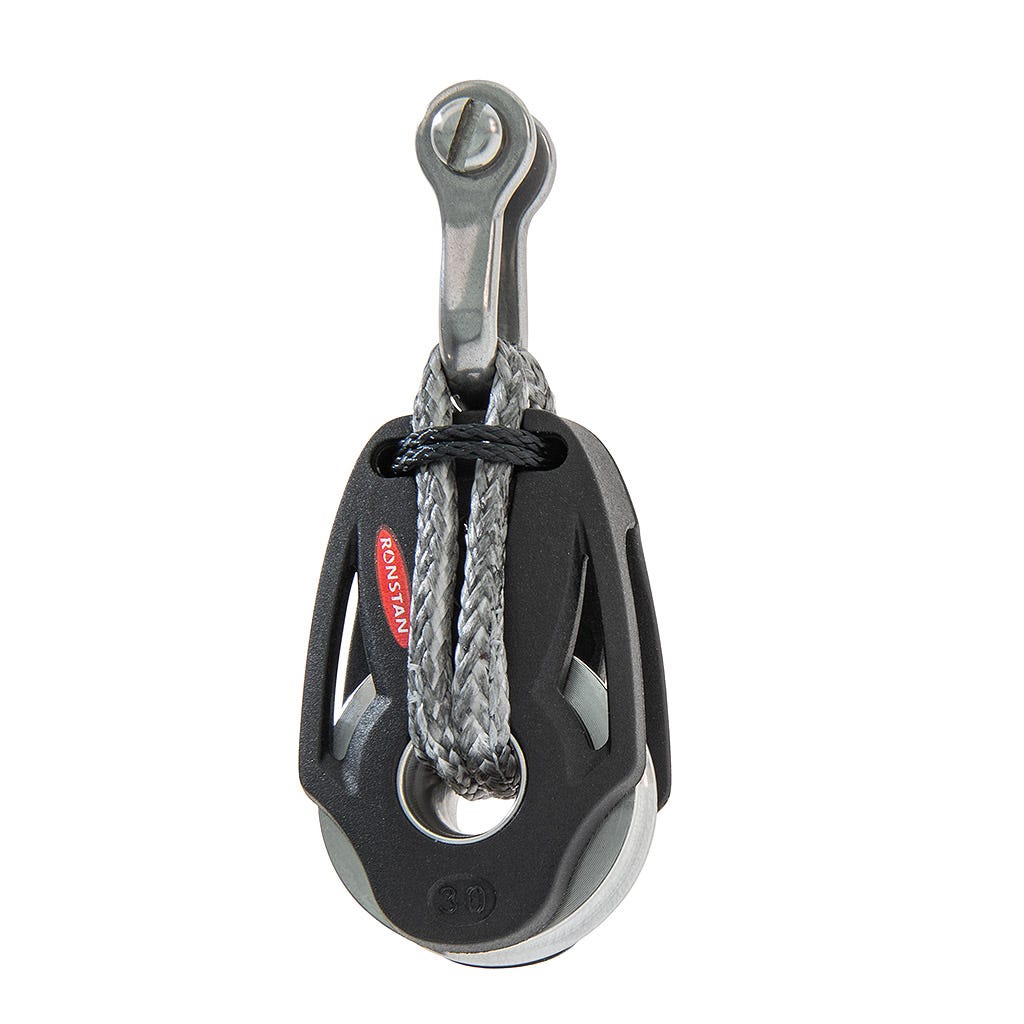

| Product Name | Series 30 High Load Orbit™ Lashing Block |
| Pin Size (mm) | – |
| Max Cable Size (mm) | 8 |
| Max Rope Size (mm) | 8 |
| MWL (kg) | 550 |
| BL (Kg) | 1650 |
| Sector | Marine |
| Brand | Ronstan |
| Warranty | 3 Years |
| Finish/Material | HHL sheave and bearing race: Grade 2205 stainless steel, Balls: Grade 304. Frame/Cheeks: Toughened, glass fibre reinforced nylon |
