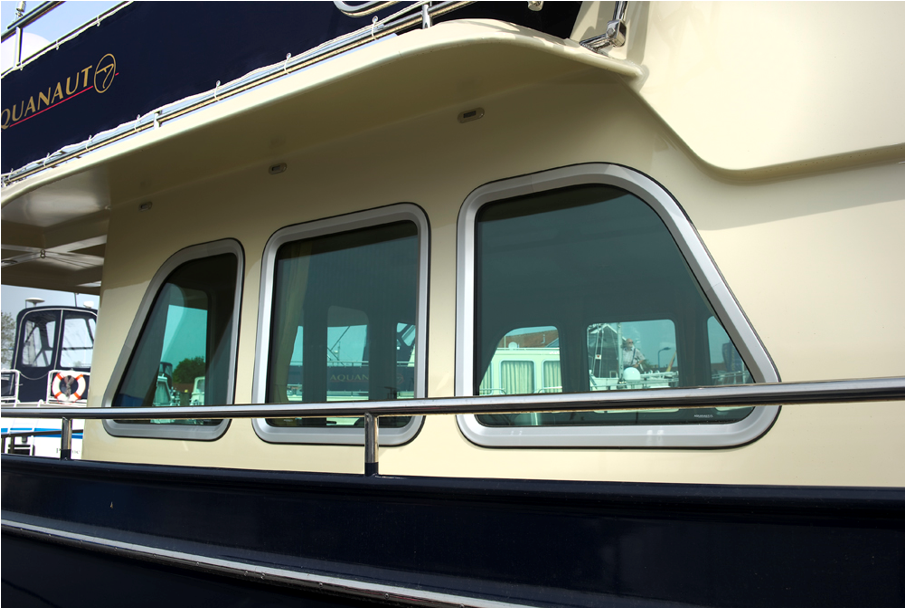

The Gebo Slim Line windows are suitable for CE areas B-C-E. Due to the sleek appearance, the Slim Line windows fit perfectly with the other Gebo marine glazing products.
Gebo ships’ windows are uniquely manufactured – it uses a special manufacturing process that prevents water from coming in and thereby prevents potential weaknesses in the structure. All our products are subjected to the harshest test procedures, making a long life is guaranteed.
SMOOTH DESIGN
All joints of the Slim Line windows are hard soldered for a watertight finish. The glass is fitted in a sealant bedding between the outer and inner aluminium frames. The inner rim is fixed with M4 screws to the outer frame. The fastenings in the internal rim are covered by a black rubber filler strips to retain their resilience.
The Slim Line windows can be delivered with round and mitred corners. They are suitable for a glass thickness of 5 mm, 6 mm and 8 mm and upon request, the Slim Line windows are fitted with insulated glass.
EASY MOUNTING
The windows are fitted by clamping the inner frame onto the back of the outer frame. The inner frame is mounted onto the outer frame by simply screwing the inner rim onto the back of the outer frame by means of M4 screws.
