TV-FM-SAT single-conn.3outs white

£95.11

Brand: Vimar
Product Code: 20303.B

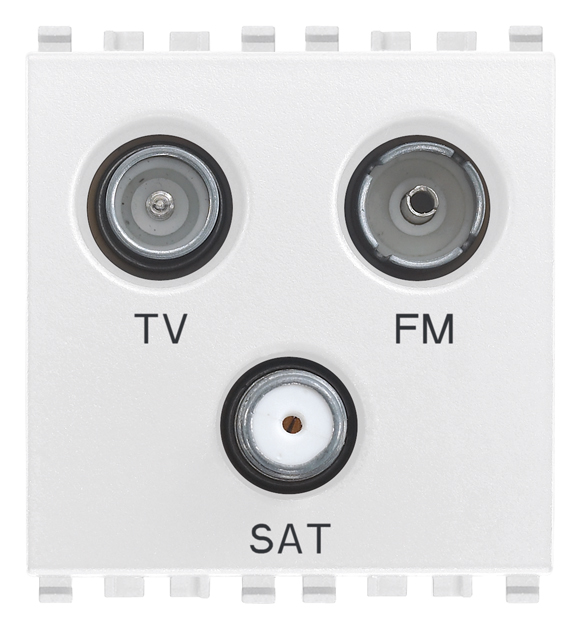

Coaxial TV-FM radio-SAT 5-2400 MHz socket outlet, single connection, demix, 3 outputs with TV male and female FM radio and F-type (SAT) connectors, connection attenuation 1 dB, white – 2 modules. Allows the passage of d.c. current and control signals (24 V 500 mA max) through the female connector

Availability: In stock

Specifications

Weight .0834 kg
Unit

Each

Overall Dimensions

5.1 x 4.3 x 5.3 CM

Sector

Architecture, Automotive, Marine

Brand

Vimar

PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond
TV-FM-SAT single-conn.3outs white Technical Datasheet
Download TV-FM-SAT single-conn.3outs white Technical Datasheet
