Home/Products/Speakers/JBL Studio 2 Speaker/Studio 2, 2-way, 2 x 8 inch in-wall speaker

Studio 2, 2-way, 2 x 8 inch in-wall speaker

Login to view prices

Brand: JBL
Product Code: STUDIO288IW
Industry: Architecture

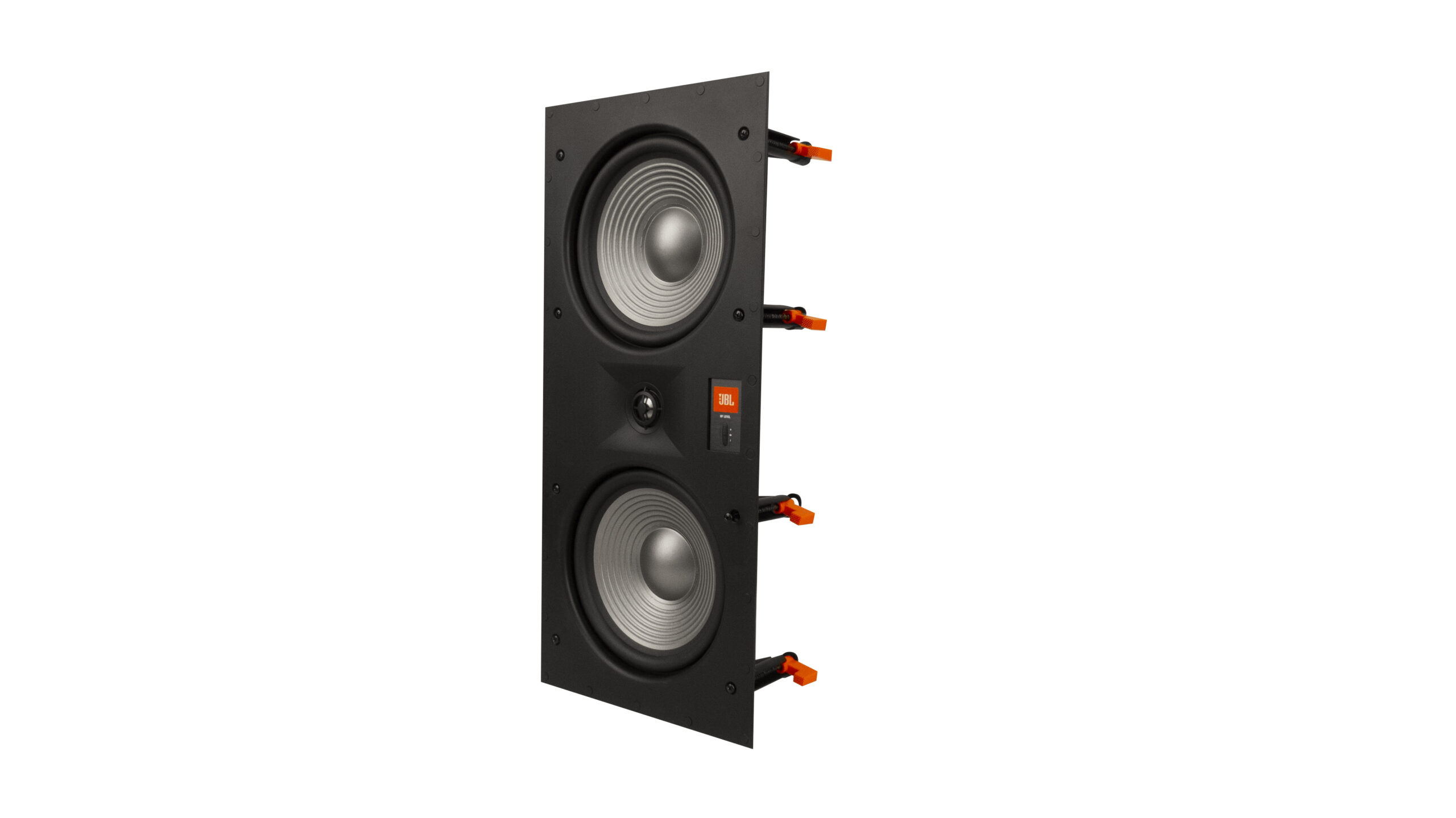

The JBL Studio 2 architectural series premium loudspeakers represent best in class architectural audio. A PolyPlas® woofer cone, CMMD@ lite tweeter and advanced crossover network ensure low distortion and accurate sound reproduction, and the pivoting, adjustablelevel tweeter can compensate for any acoustical room conditions. The proprietary JBL High-Definition Imaging (HDI) waveguide ensures that the loudspeaker fills the room with cinemaquality sound from any location – even high elevations or off-axis listening locations. The JBL Studio 2 architectural series features a nearly invisible, paintable, zero-bezel profile that blends into any environment. The sturdy, reliable design features the XL-2 bracket, suitable for installation in any wall or ceiling up to 2″ thick. The series is engineered to match the award-winning JBL Studio 2 component loudspeakers, and is perfect for a complete custom home theater or whole-house audio applications.

Specifications

Weight 0.00 kg
Mounting Type

In-Wall

Frequency Response

30Hz – 20kHz

Loudspeaker Sensitivity

88dB

Crossover Frequency

2.8kHz

Low Frequency Driver

2 x 8" Polyplas woofer

High Frequency Driver

1" Pivoting CMMD Lite Tweeter

Depth

3-13/16"

Wall Thickness

0.5"-2.0"

Warranty

5 years

Power (W)

150W

Unit

Each

Cut Out Dimension

20-1/16" x 9" (510mm x 227mm)

Overall Dimensions

21-3/16" x 10" (538mm x 254mm)

Sector

Architecture

Brand

JBL

PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond
Studio 2, 2-way, 2 x 8 inch in-wall speaker Technical Datasheet
Download Studio 2, 2-way, 2 x 8 inch in-wall speaker Technical Datasheet
