One-piece design with 8-inch (200mm) LF driver and duel-element MF/HF driver.

Login to view prices

Brand: JBL
Product Code: JBLC83
Industry: Architecture

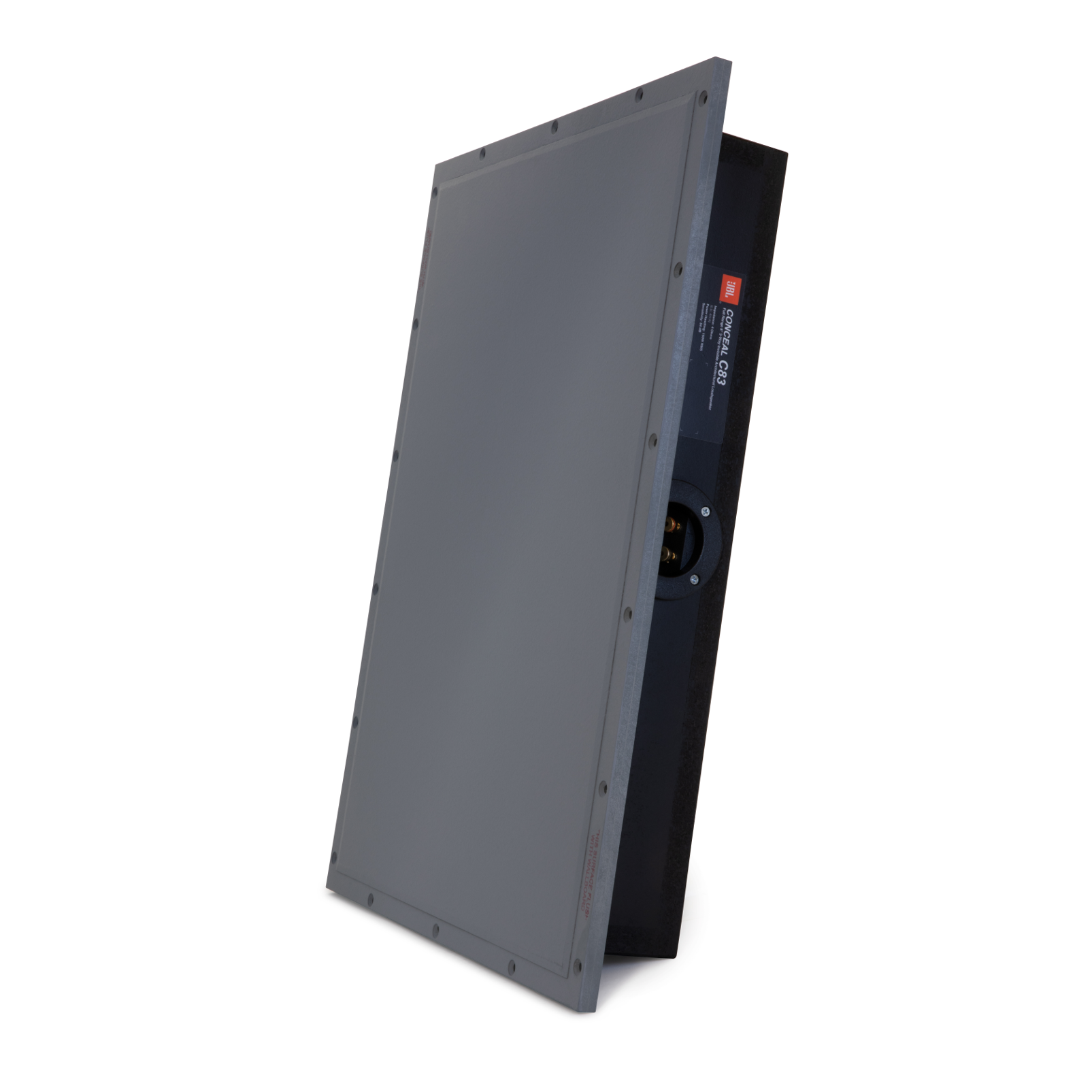

The JBL Conceal C83 Invisible Loudspeaker is a high-performance 3-element design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls or ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

Specifications

Weight 0.00 kg
Mounting Type

In-Wall

Frequency Response

45Hz – 20kHz

Loudspeaker Sensitivity

84dB

Crossover Frequency

500Hz

Low Frequency Driver

8-inch (203mm) woofer with 1.5-inch (38mm) voice coil

High Frequency Driver

1-inch (25mm) voice coil transducer with neodymium magnet

Depth

3-3/8-inches

Warranty

5 years

Power (W)

50-160W

Unit

Each

Cut Out Dimension

22-1/8” H x 16” W

Overall Dimensions

(H x W x D): 22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)

Sector

Architecture

Brand

JBL
