Deckhatch R55 Fl 900*600mm

£2,082.43

Brand: Gebo
Product Code: 80.30.10.00
Industry: Automotive, Marine

Deckhatch R55 Fl 900*600mm

STEPLESS OPENING UP TO 180°, PLUS EASY HINGE ADJUSTMENT

Strong friction hinges keep the hatch open in any position, from ventilation position to 180°. The friction of the hinges can also be easily adjusted by the user.

UNIQUE FLOOD BARRIER

A deep groove in the lower frame keeps water out when the hatch is open.

Gebo’s unique Airco-Lock anti-theft ventilation mode provides fresh air while the crew is resting or when the boat is unattended. The hatch is locked on the inside in ventilation or in a completely closed position.

ADVANTAGES OF STANDARD HATCHES:

– sleek and timeless design;
– stepless opening up to 180 degrees;
– unique Airco-Lock anti-theft ventilation stand;
– unique flood defence;
– 100% waterproof mounting;
– standard CE Class A Ocean.

Specifications

Weight 0.00 kg
Unit

Each

Outer Radius

83mm

Inner Radius

55m

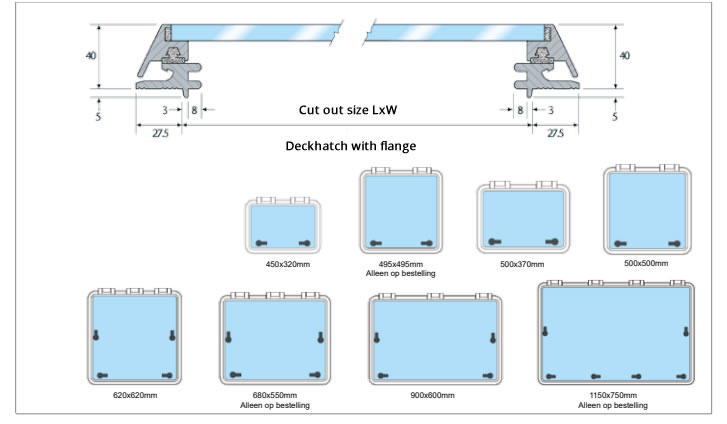

Cut Out Dimension

900*600 mm

Overall Dimensions

955 x 655mm

Finish/Material

Anodised Aluminium

Sector

Automotive, Marine

Brand

Gebo

PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond
Deckhatch R55 Fl 900*600mm Technical Datasheet
Download Deckhatch R55 Fl 900*600mm Technical Datasheet
