Specifications
| Weight | 210 kg |
|---|---|
| Voltage Input (VDC) | 10-35 |
| Unit | Each |

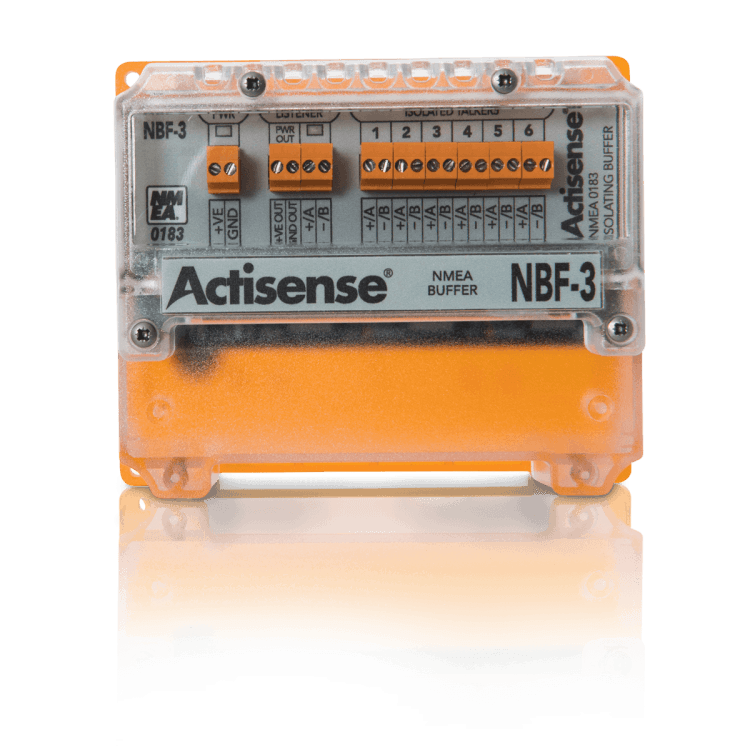

| Product Name | NMEA Buffer |
| Current Draw (A) | 100mA |
| IP Rating | IP66 |
| Bus | NMEA0183 |
| Sector | Automotive, Marine |
| Brand | Actisense |
| Mounting Type | 4 x 3.5mm lugs to allow panel mount with self tapping screws (included), optional DIN rail mount available on request |
| Channels Output | Six isolated NMEA 0183 Talkers |
| Overall Dimensions | 127mm (L) x 106mm (W) x 48mm (H) |
| Input | One isolated NMEA 0183 Listener |
| Finish/Material | Sealing Materials: Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent. Housing/Protective Lid: Polycarbonate |
